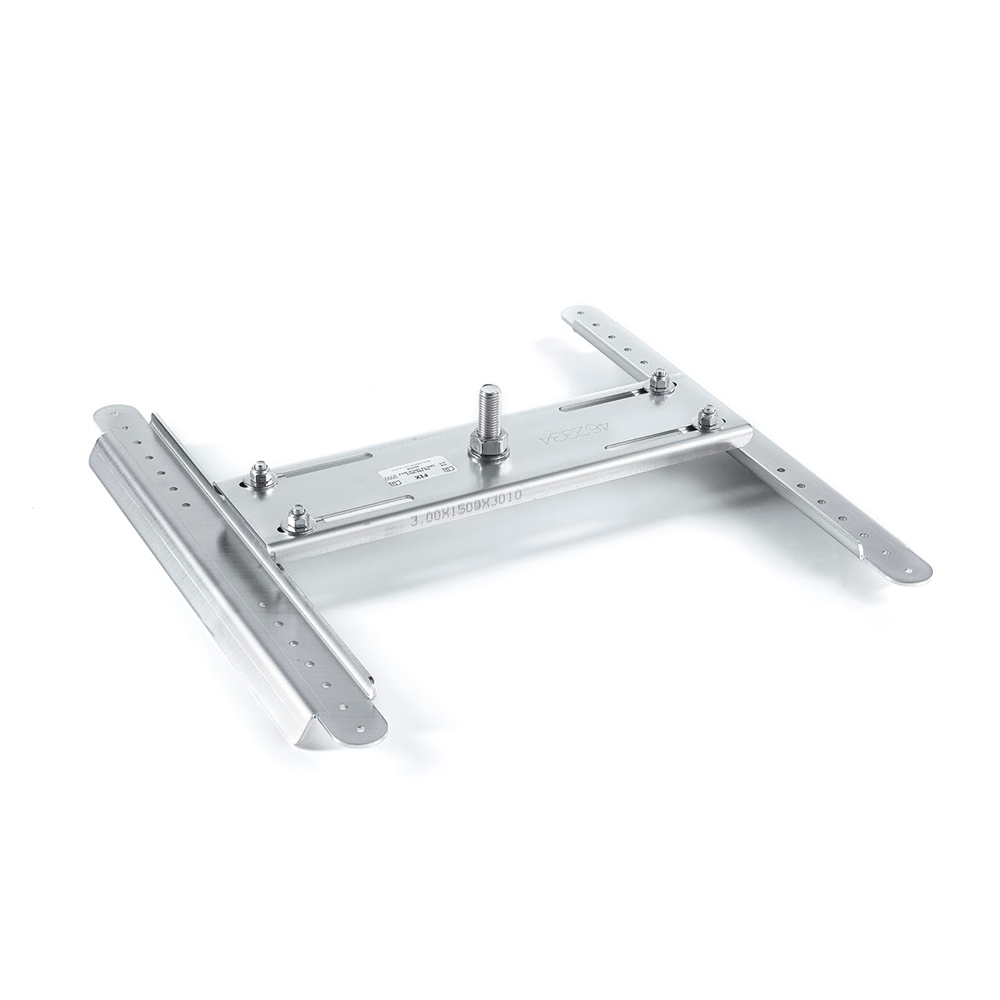

.sandwich panels & trapezoidal sheet
COMPONENTS

Sandwich

Including fastener set (butyl tape, 28 seal rivets)
Material:
Stainless steel
Bead spacing:
on sandwich panels and trapezoidal supports (steel sheet at least 0.48 mm)
Fastening:
4 Personen
Application:
single anchor point, intermediate cable point, end and corner mounting
Art. No.
Description
69002000
Green Fix
DOWNLOADS

END FITTING SET FAST END

With integrated impact absorber, fall indicator clamp and constant pressure spring. End fitting
both ends of the system, both ends constant
spring-assisted cable tension (1 set = 2 pcs)
Material:
Stainless steel / aluminium
Art. No.
Description
68910360
End Fitting Set Fast End

END FITTING SET FAST END +

For straight run cable systems up to 30 metres long with integrated impact absorber, fall indicator clamp and constant pressure spring. End fitting both ends of the system, both ends constant spring-assisted cable tension (1 set = 2 pcs)
Material:
Stainless steel / aluminium
Art. No.
Description
68910310
End Fitting Set Fast End +

INTERMEDIATE CABLE POINT ZH

Material:
Stainless steel
Application:
Universal intermediate cable point with 1 mounting point for roof and cladding systems, moves through 180°, can be accessed from both ends, for special applications can be fixed in
5 steps, can be passed over
Art. No.
Description
48910400
Intermediate cable point GZH

INTERMEDIATE CABLE POINT ZH-X

not passable
Material:
Stainless steel
Application:
Not suitable for SDW 1 and SDW 2. Cannot be passed over
Art. No.
Description
48910500
Intermediate cable point GZH X

INTERMEDIATE CABLE POINT

LANG ZH-40
Material:
Stainless steel
Application:
Universal intermediate cable point with 1 mounting point for roof, cladding and overhead systems flexibly bendable up to 40°, moves through 180°, can be accessed from both ends,
for special applications, 5 stage fixing, can be passed over
Art. No.
Description
48991100
Intermediate cable point long GZH 40

Corner EH-45

EH 45
Material:
Stainless steel
Application:
45° corner with 1 mounting point, for an inside or outside corner, as well as for overhead systems.
Art. No.
Description
48911300
Corner GEH 45°

Corner EH-90

EH 90
Material:
Stainless steel
Application:
45° corner with 1 mounting point, for an inside or outside corner, as well as for overhead systems.
Art. No.
Description
48911200
Corner GEH 45°

Flex corner

Material:
Stainless steel
Application:
Universal cable pulley with
1 mounting point, for all angles up to 180°, cannot be passed over
Art. No.
Description
48911600
Cable pulley

STAINLESS STEEL CABLE

Material:
Stainless steel (V4A)
Diameters:
8 mm (7 x 7 wires)
Breaking strength:
36 kN
Art. No.
Description
47901011
Stainless steel cable Green

DATA TAG

GREENLINE 795 C
To identify the cable system
1 data tag per end fitting set
Art. No.
Description
48500010
Data tag Greenline 795 C
