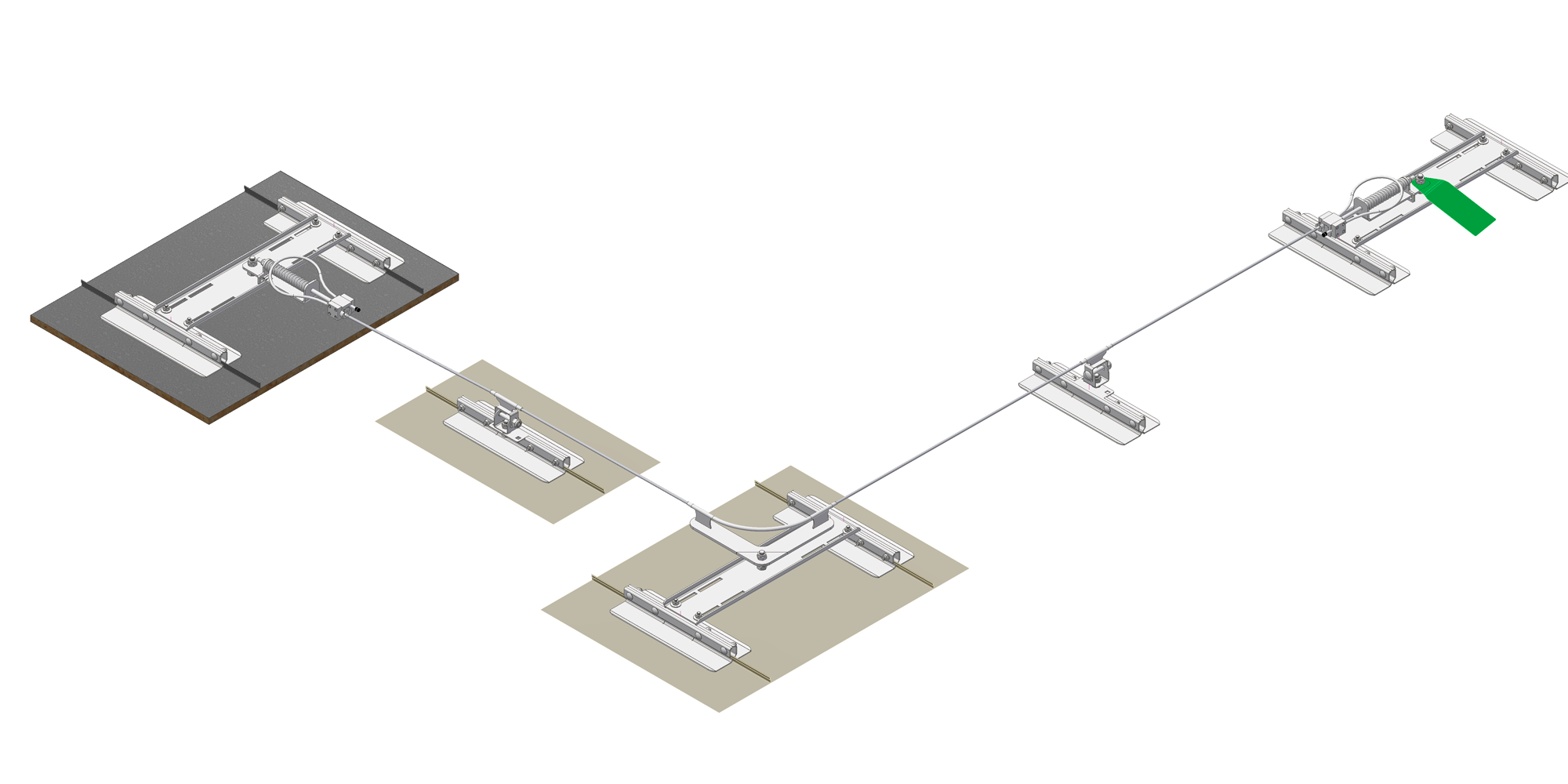

.standing seam roofs & round "bulb" seam
COMPONENTS

CLIP 1

For fastening to double standing seam
Material:
Stainless steel
Base material:
Aluminium 0.7 mm / stainless steel 0.5 mm,
copper 0.6 mm / galvanised steel 0.6 mm / titanium zinc 0.7 mm
Approved for:
2 persons
Application:
single anchor point, intermediate cable point, roof hook 6
Art. No.
Description
49480100
Green CLIP 1
DOWNLOADS

CLIP 2

For fastening to double standing seam
Material:
Stainless steel
Seam width:
mind. 320 mm,
max. 640 mm
Base material:
Aluminium 0.7 mm / stainless steel 0.5 mm,
copper 0.6 mm / galvanised steel 0.6 mm / titanium zinc 0.7 mm
Approved for:
4 persons
Application:
single anchor point, intermediate cable point, end and corner mounting.
Art. No.
Description
49480200
Green CLIP 2
DOWNLOADS

END FITTING  SET FAST END

With integrated impact absorber, fall indicator clamp and constant pressure spring. End fitting
both ends of the system, both ends constant
spring-assisted cable tension (1 set = 2 pcs)
Material:
Stainless steel / aluminium
Art. No.
Description
68910360
End Fitting Set Fast End

END FITTING SET FAST END +

For straight run cable systems up to 30 metres long with integrated impact absorber, fall indicator clamp and constant pressure spring. End fitting both ends of the system, both ends constant spring-assisted cable tension (1 set = 2 pcs)
Material:
Stainless steel / aluminium
Art. No.
Description
689103010
End Fitting Set Fast End +

INTERMEDIATE CABLE POINT ZH

Material:
Stainless steel
Application:
Universal intermediate cable point with 1 mounting point for roof and cladding systems, moves through 180°, can be accessed from both ends, for special applications can be fixed in
5 steps, can be passed over
Art. No.
Description
48910400
Intermediate cable point GZH

INTERMEDIATE CABLE POINT ZH-X

not passable
Material:
Stainless steel
Application:
Not suitable for SDW 1 and SDW 2. Cannot be passed over
Art. No.
Description
48910500
Intermediate cable point GZH X

Corner EH-45

EH 45
Material:
Stainless steel
Application:
45° corner with 1 mounting point, for an inside or outside corner, as well as for overhead systems.
Art. No.
Description
48911300
Corner GEH 45°

Corner EH-90

EH 90
Material:
Stainless steel
Application:
90° corner with 1 mounting point, for an inside or outside corner, as well as for overhead systems.
Art. No.
Description
48911200
Corner GEH 90°

Flex corner

Material:
Stainless steel
Application:
Universal cable pulley with
1 mounting point, for all angles up to 180°, cannot be passed over
Art. No.
Description
48911600
Cable pulley

INTERMEDIATE CABLE POINT

LONG ZH-40
Material:
Stainless steel
Application:
Universal intermediate cable point with 1 mounting point for roof, cladding and overhead systems flexibly bendable up to 40°, moves through 180°, can be accessed from both ends,
for special applications, 5 stage fixing, can be passed over
Art. No.
Description
48991100
Intermediate cable point long GZH 40

STAINLESS STEEL CABLE

Material:
Stainless steel (V4A)
Diameters:
8 mm (7 x 7 wires)
Breaking strength:
36 kN
Art. No.
Description
47901011
Stainless steel cable Green

DATA TAG

GREENLINE 795 C
To identify the cable system
1 data tag per end fitting set
Art. No.
Description
48500010
Data tag Greenline 795 C
